USA STANDARD
HEAVY DUTY CASTER
In my experience, the red-bracket series represents the peak of AISI 1045 steel engineering. Featuring a 4″ x 4.5″ top plate, it’s my top choice for high-impact industrial environments where failure is not an option.
Get Technical Drawings
Why the 4″ x 4.5″ Plate is the Backbone of American Industry
In my 20 years of manufacturing, I’ve found that the 4″ x 4.5″ top plate (101.6mm x 114.3mm) isn’t just a measurement—it’s a safety standard. Whether you are operating in a logistics hub in Chicago or a manufacturing plant in Texas, this mounting pattern ensures the AISI 1045 steel bracket distributes load stress evenly across the cart frame.

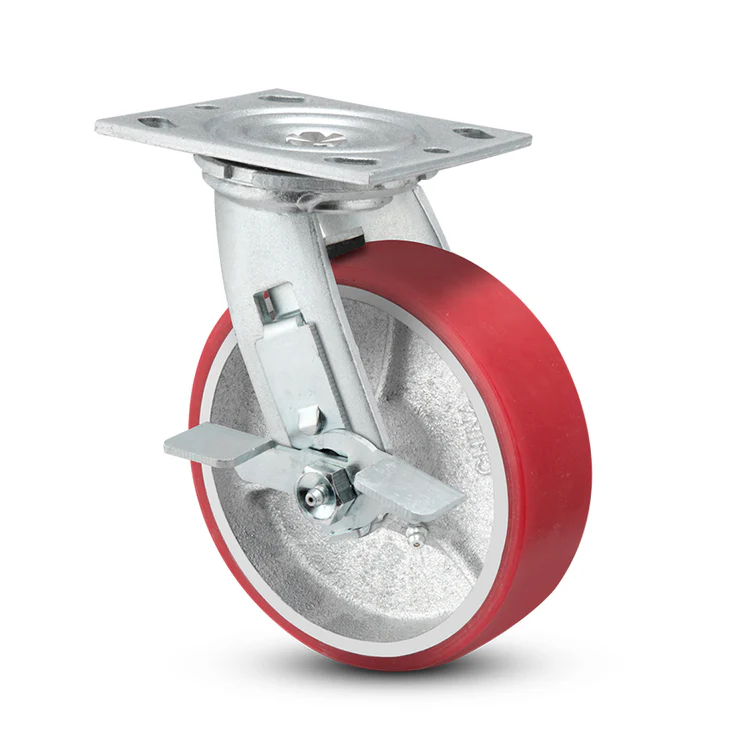

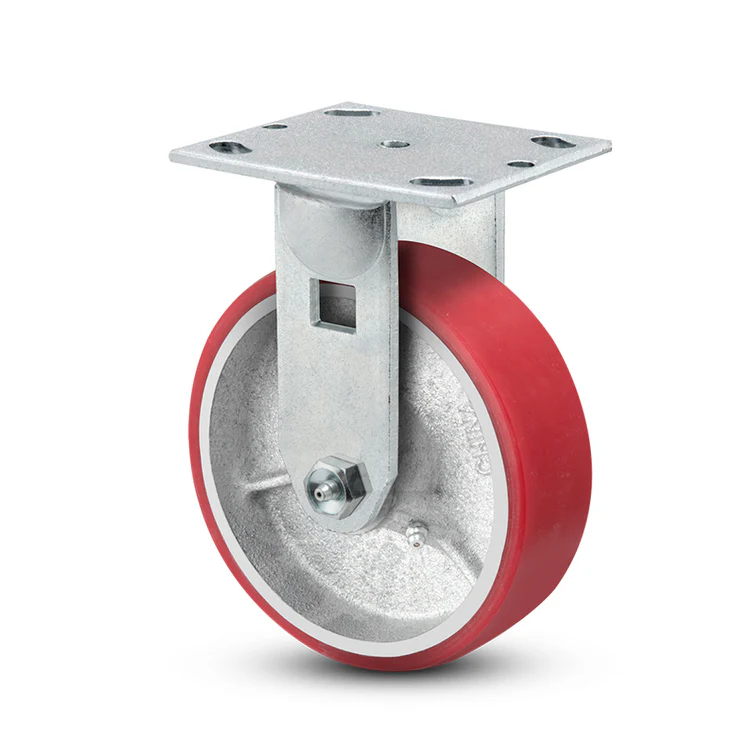

My top choice for heavy-duty applications is always the Polyurethane on Iron wheel. Why? Because it offers the perfect balance between floor protection and a massive 1,250 lbs load capacity. However, if you are dealing with oily environments or high temperatures, I strongly recommend switching to Phenolic Resin. It won’t develop flat spots even if the equipment sits stationary for months.
When selecting your series, don’t overlook the double ball raceway. Many low-cost casters cut corners here, but in my experience, a heat-treated raceway is the only thing preventing a “frozen swivel” after six months of hard use.
| Series Name | Load Capacity | Best Environments | Key Benefit |
|---|---|---|---|
| PU on Cast Iron | 1000 – 1200 lbs | Warehouses & Logistics | High Capacity & Floor Safety |
| Rubber on Iron | 400 – 800 lbs | Outdoor & Rough Floors | Shock Absorption & Quiet |
| TPR Industrial | 300 – 600 lbs | Hospitals & Hotels | Non-Marking & Silent |
| Phenolic Resin | 1000 – 1400 lbs | Heavy Duty Shop Floors | Chemical Resistant |
